Advanced Composite Decking Board
Advanced Composite Decking Board
SKU: NT-DK-ADV-HOL-GREYNot sure which colour? Order free samples · Questions? Speak to an expert
Product benefits
Why choose Grainex® composite
Up to 25-Year Warranty
The most comprehensive warranty available on UK composite products. Residential and commercial cover included.
Zero Maintenance
Never sand, paint, stain or treat. A simple wash with soapy water is all that's ever needed.
Anti-Slip Both Sides
Embossed grip texture on both board faces provides safe footing in wet conditions year-round.
Fade & Stain Resistant
UV-stabilised composite won't fade, splinter or rot. Resists mould, algae, oil and wine stains.
Weatherproof
Handles British frost, rain and UV without warping, cracking or delaminating.
Eco-Responsible
Made from recycled wood fibres and reclaimed plastics. FSC-certified. A sustainable timber alternative.
About this product

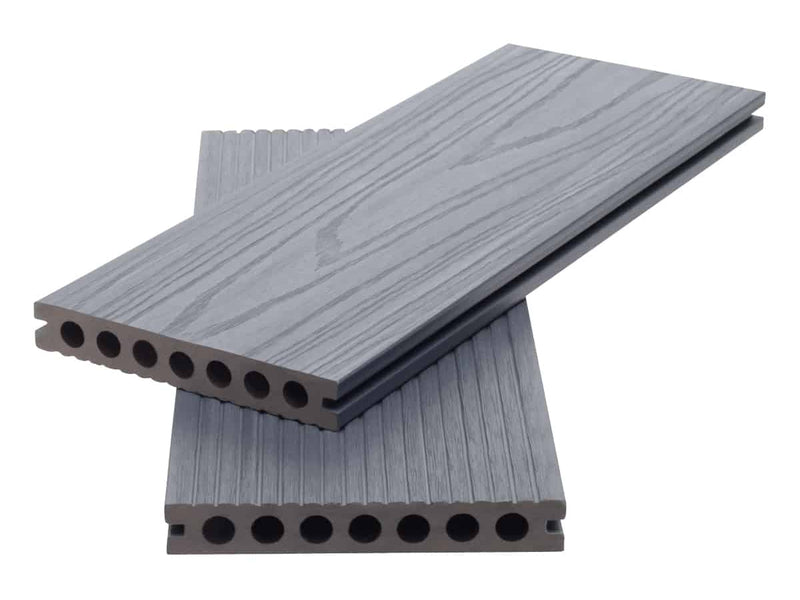

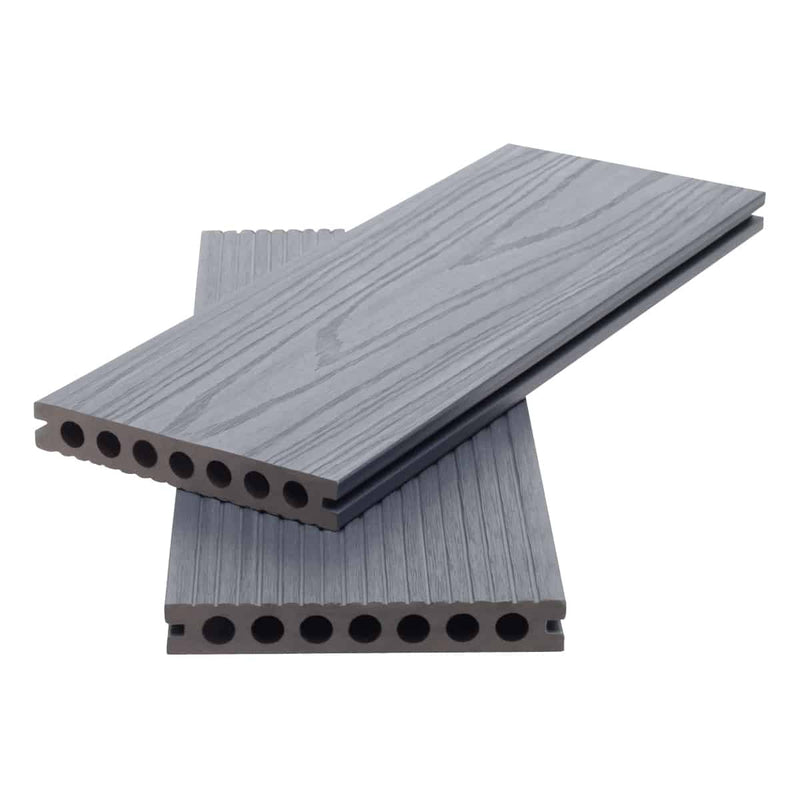

The Advanced composite deck board is our second-generation hollow capped composite decking board. Featuring a four-sided cap that provides exceptional resistance to staining, fading and weathering, the Advanced board is ideal for residential decking projects where premium performance and natural aesthetics are paramount. Available in eight popular colours including the full range of NeoTimber® wood-effect shades.
Why choose Advanced composite decking?
- Embossed Woodgrain. The Advanced board has an embossed woodgrain finish that is two-tone in appearance. Designed to mimic the authentic feel of timber, the Advanced range is designed to act as an extension to your indoor flooring, joining your indoor retreat to your outdoor oasis.
- Reversible Finish. Unlike some other capped composite boards, our Advanced range comes with a 360-degree capping that wraps the entire board. This results in not only superior protection from the elements, but also offers a reversible design. The choice between grooves or woodgrain is yours.
- Hollow Tube Design. A hollow ‘tube’ design promises a lightweight composition without the compromise on strength and durability. What’s more, we remove a fraction of the material within the core in order to better match the strength of the board’s solid alternative.
Technical Specifications
Board dimensions: 143mm (W) x 21.5mm (D) x 3600mm (L)
Weight per board: 10.48kg
| Characteristic | Result |
|---|---|
| Density | 1.27g/cm3 |
| Flexural Strength | 26.9 Mpa |
| Flexural Stiffness | 3813 Mpa |
| Maximum Load | 3739 N |
| Impact Resistance | 66 J/m |
| Durometer Hardness | 67.8 Shore D |
| Tensile Strength | 23.0 Mpa |
| Water Absorption | 0.13% |
| Linear Thermal Expansion | 37.8x10-6 K-1 |
| Reaction to Fire | C fl -s1 |
| Slip Resistance | 0.36 - 0.88 (See Below) |
Installation & Care
Before you start: store boards flat and allow them to acclimatise on site before fitting. Leave appropriate expansion gaps at board ends and edges, as composite expands and contracts with temperature.
Fitting: install onto a suitable, well-ventilated subframe (composite, plastic or treated timber joists) with joist centres no greater than recommended for the range. Secure with the matching NeoTimber clips and screws, fitting along the length of the boards.
Routine care: clean every 3–6 months using warm soapy water and a soft-bristled brush, working along the length of the boards. A jet wash up to 3100 PSI may be used with a fan attachment kept at least 250mm from the surface.
Exclusively handpicked excellence, manufactured and distributed by NeoTimber®
Technical Specifications
| Product name | Advanced Composite Decking Board |
| SKU | NT-DK-ADV-HOL-GREY |
| Material | Co-extruded composite (WPC) — recycled wood fibre & HDPE |
| Board length | 3.6m |
| Board width | 143mm |
| Board thickness | 21.5mm |
| Weight per board | 10.48kg per board |
| Coverage per board | approx. 0.515m² |
| Core construction | Hollow tube, 360° capped |
| Surface finish | Reversible: embossed woodgrain / grooved, 360° capped |
| Minimum joist spacing | 400mm centres (perpendicular) / 300mm diagonal |
| Fire classification | C fl-s1 |
| Residential warranty | 25 years residential / 10 years commercial |
| Commercial warranty | 10 years |
Compare the Full Range
Find the right grade for your project and budget.
| Feature | Lite | Essential | Classic | Advanced | Deluxe |
|---|---|---|---|---|---|
| Price (from) | £19/board | £23/board | £28/board | £32/board | £38/board |
| Core | Single wall | Single wall | Hollow twin | Solid | Solid + cap |
| Co-extrusion | ✕ | ✕ | ✓ | ✓ | Premium |
| Colours available | 4 | 4 | 4 | 8 | 8 |
| Fade resistance | Good | Good | Very Good | Excellent | Superior |
| Residential warranty | 10 years | 15 years | 20 years | 25 years | 25 years |
| Best for | Budget builds | Standard decks | Mid-range | Quality finish | Premium projects |
Installation Guide
A professional-finish composite deck can be installed by a competent DIYer over a weekend.
Plan and measure your area
Mark out your deck area and calculate the total square meterage. Add 10–15% for cuts and wastage.
Prepare the sub-frame
Install pressure-treated C24 timber or aluminium joists on a firm, level base. Joist spacing must not exceed 400mm centre-to-centre for perpendicular boards, 300mm for diagonal laying.
Lay the first board
Start at the most visible edge or against the house wall. Allow a 5mm gap from any fixed structure. Use the supplied starter clips — slot into the board's groove and screw into each joist.
Continue laying boards
Press each board firmly into the previous clips, then add middle clips to the exposed groove. Check alignment every 3–4 boards. Stagger butt joints by at least 600mm across rows.
Cut and finish edges
Use a fine-tooth circular saw with the cut side face-up. Seal cut ends if the deck will be exposed to standing water at that edge.
Add trims and fascia
Finish exposed edges with matching fascia, corner trims, and skirting. Fit edge boards using stainless screws colour-matched to your boards.
