Slatted Composite Gate
Slatted Composite Gate
SKU: NT-FN-GAT-COM-SLA-GREYNot sure which colour? Order free samples · Questions? Speak to an expert
Product benefits
Why choose Grainex® composite
Up to 25-Year Warranty
The most comprehensive warranty available on UK composite products. Residential and commercial cover included.
Zero Maintenance
Never sand, paint, stain or treat. A simple wash with soapy water is all that's ever needed.
Anti-Slip Both Sides
Embossed grip texture on both board faces provides safe footing in wet conditions year-round.
Fade & Stain Resistant
UV-stabilised composite won't fade, splinter or rot. Resists mould, algae, oil and wine stains.
Weatherproof
Handles British frost, rain and UV without warping, cracking or delaminating.
Eco-Responsible
Made from recycled wood fibres and reclaimed plastics. FSC-certified. A sustainable timber alternative.
About this product

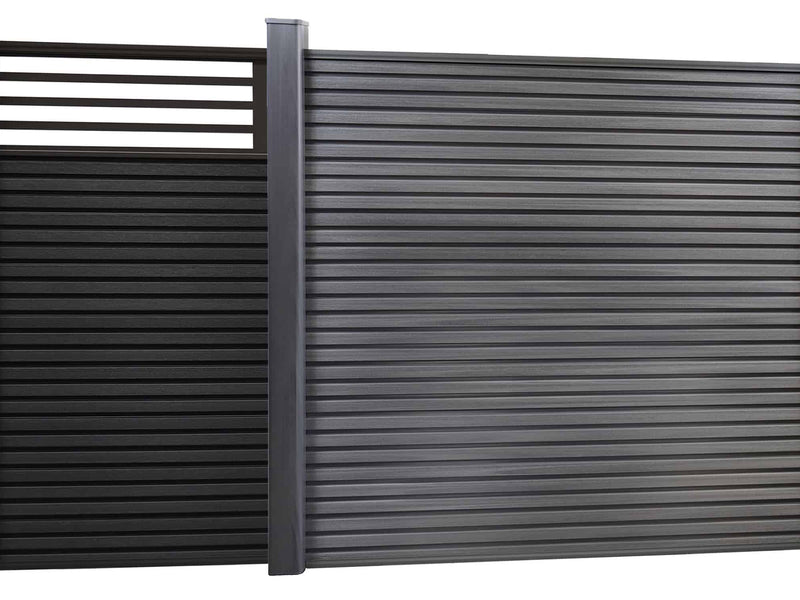

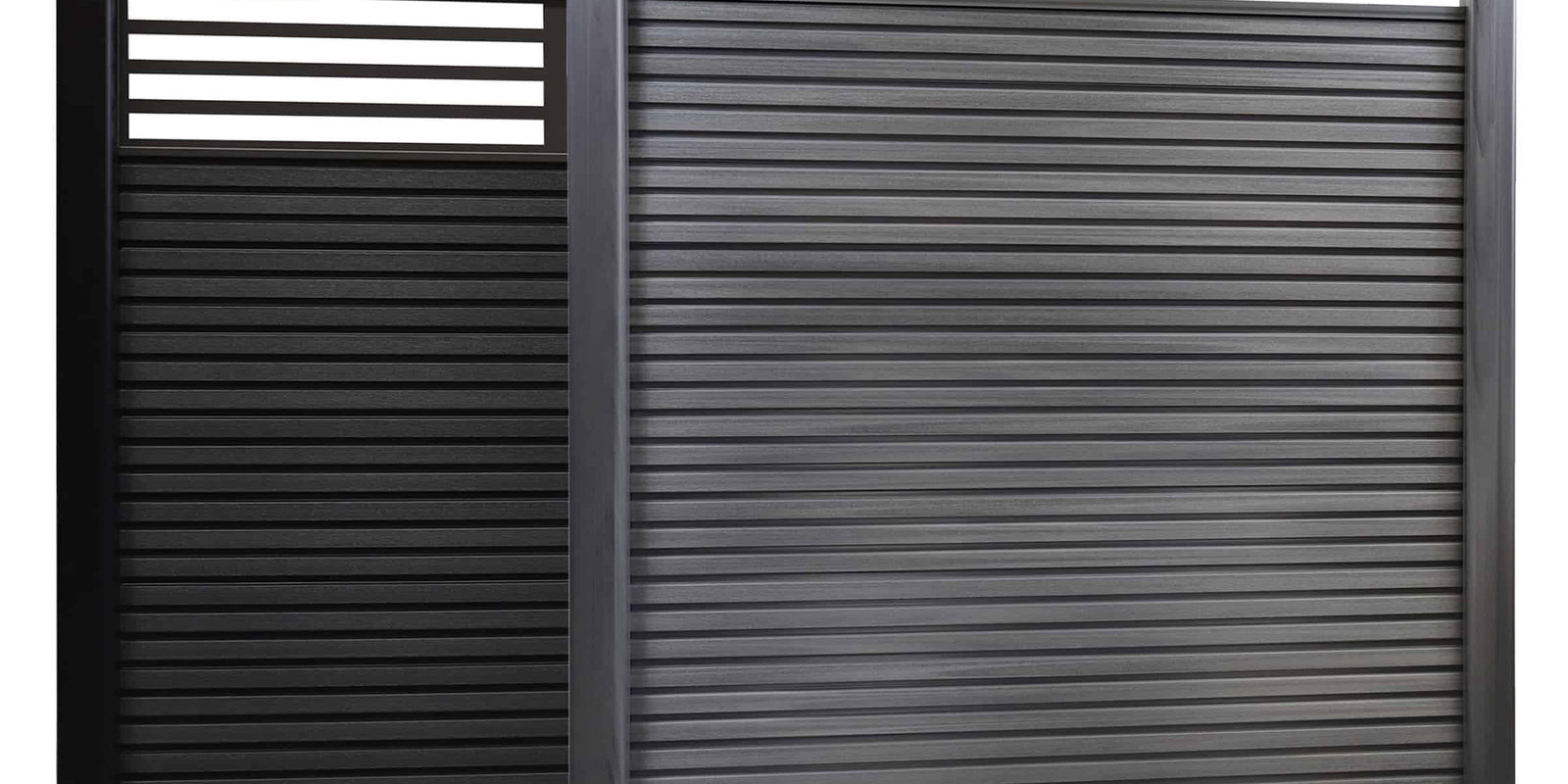

Slatted Composite Gate features a contemporary slatted design that perfectly complements NeoTimber® slatted fence panels. This 900mm x 1700mm gate is constructed from premium composite materials for exceptional durability and requires no maintenance. Available in all eight NeoTimber® colours.
Exclusively handpicked excellence, manufactured and distributed by NeoTimber®
Technical Specifications
| Product name | Slatted Composite Gate |
| SKU | NT-FN-GAT-COM-SLA-GREY |
| Material | Co-extruded composite (WPC) — recycled wood fibre & HDPE |
| Board length | 3.6m |
| Board width | 145mm |
| Board thickness | 25mm |
| Weight per board | approx. 6.2kg |
| Coverage per board | approx. 0.52m² |
| Core construction | Hollow twin-wall |
| Surface finish | Co-extruded cap both sides, anti-slip emboss |
| Minimum joist spacing | 400mm perpendicular / 300mm diagonal |
| Fire classification | Euroclass E |
| Residential warranty | Up to 25 years |
| Commercial warranty | 10 years |
Compare the Full Range
Find the right fence panel for your boundary.
| Feature | Deluxe Composite | Slatted Composite |
|---|---|---|
| Style | Solid woodgrain | Modern horizontal slatted |
| Slat / board dimensions | Board 145×24mm | Slat 176×24×1726mm |
| Panel coverage | 1.83m wide × 1.8m high | 1.83m wide × 1.8m high |
| Post options | Aluminium (hard) or composite (soft) | Aluminium (hard) or composite (soft) |
| Privacy | Full | High |
| Wind resistance | Excellent | Good |
| Colours available | 8 | 8 |
| Best for | Privacy and screening | Contemporary garden design |
Installation Guide
Composite fencing fits between concrete-set posts. Allow 24 hours for post-mix to cure before loading panels.
Mark and dig post holes
Posts go at 1.83m centres for standard panels. Holes should be 600mm deep and 300mm wide. Aluminium post for hard ground (bolt-down) or composite post for soft ground (concrete-set).
Set the first post
Stand the post in the hole, brace plumb in both directions, and fill with post-mix or concrete. Check level repeatedly as it sets.
Slide in the panel boards
Stack horizontal slats or boards into the channel of the first post, working from the bottom up. Each board sits on the one below.
Set the second post
Slide the second post over the loose end of the boards, then plumb and concrete in place. Repeat across the fence run.
Fit the gate (if applicable)
Gates hinge to a reinforced gate post. Use the supplied heavy-duty hinges. Allow 8mm clearance at the latch side to prevent binding in wet weather.
Cap and inspect
Fit decorative post caps. Wash the whole fence with soapy water to remove dust and handling marks.
