Slatted Composite Fence Panel Set (Hard Ground)
Slatted Composite Fence Panel Set (Hard Ground)
SKU: NT-FN-PAN-SET-COM-SLA-HRD-GREYNot sure which colour? Order free samples · Questions? Speak to an expert
Product benefits
Why choose Grainex® composite
Up to 25-Year Warranty
The most comprehensive warranty available on UK composite products. Residential and commercial cover included.
Zero Maintenance
Never sand, paint, stain or treat. A simple wash with soapy water is all that's ever needed.
Anti-Slip Both Sides
Embossed grip texture on both board faces provides safe footing in wet conditions year-round.
Fade & Stain Resistant
UV-stabilised composite won't fade, splinter or rot. Resists mould, algae, oil and wine stains.
Weatherproof
Handles British frost, rain and UV without warping, cracking or delaminating.
Eco-Responsible
Made from recycled wood fibres and reclaimed plastics. FSC-certified. A sustainable timber alternative.
About this product

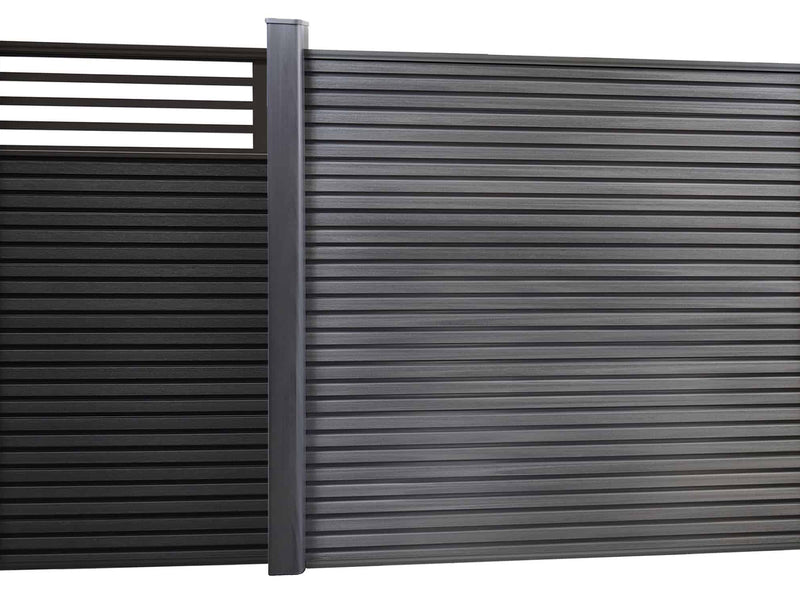

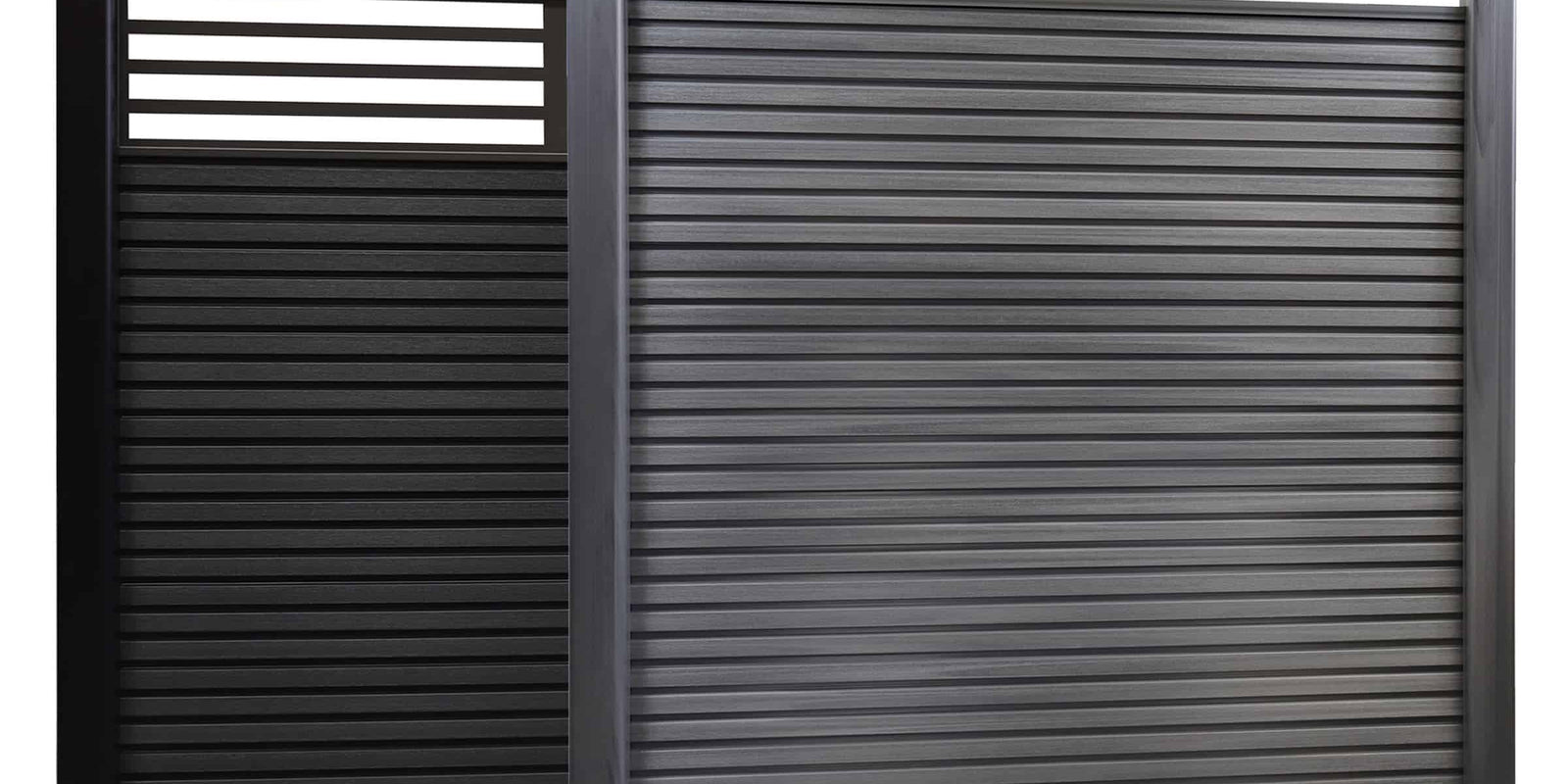

Slatted Composite Fence Panel Set provides a complete slatted fencing solution with contemporary design. Each 1800mm x 1800mm panel set includes slatted fence boards, composite posts and all required fixings. Available for hard ground or soft ground installation and in all eight NeoTimber® colours.
Why choose NeoTimber composite fencing?
- Striking Aesthetics. The slatted effect emulates the modern, smart appearance of shadow-gap fencing, supplied in five premium colours with a choice of four decorative screens that slot into place atop your panels.
- Fade & Stain Resistant. All boards and posts are capped with a protective polymer sleeve, making the surface easy to clean. UV inhibitors fortify the colours against the fading effects of sunlight.
- Modular Design. Able to be fixed to timber, concrete and composite posts. Buy full panel kits or individual components; the tongue-and-groove system makes for a painless installation and smart finish.
Technical Specifications
Dimensions: Slat: 176mm (W) x 24mm (D) x 1726mm (L) | Post: 100mm x 100mm x 1800mm (L)
Weight: 4.17kg
| Characteristic | Result |
|---|---|
| Density | 1.285g/cm3 |
| Flexural Strength | 27.9 Mpa |
| Flexural Stiffness | 4604 Mpa |
| Falling Mass Impact Resistance | 0.16 mm |
| Rockwell Hardness | 83.3 R |
| Tensile Strength | 21.8 Mpa |
| Water Absorption | 0.18% |
| Linear Thermal Expansion | 66.75μm/m·°C |
| Noise Reduction | ≤29db |
Installation & Care
Before you start: the modular system fixes to composite, timber or concrete posts. Choose full panel kits or individual components to suit your project.
Fitting: set posts (composite posts are available for hard or soft ground), then slot the tongue-and-groove boards between them using the rail sets and clips. Decorative screens can be added on top of panels.
Routine care: clean with warm soapy water and a soft-bristled brush. The capped, UV-inhibited surface resists fading and wipes clean easily.
Exclusively handpicked excellence, manufactured and distributed by NeoTimber®
Technical Specifications
| Product name | Slatted Composite Fence Panel Set (Hard Ground) |
| SKU | NT-FN-PAN-SET-COM-SLA-HRD-GREY |
| Material | Co-extruded composite (WPC) — recycled wood fibre & HDPE |
| Board length | 1.726m (slat) / 1.8m (post) |
| Board width | 176mm (slat) / 100mm (post) |
| Board thickness | 24mm |
| Weight per board | 4.17kg per slat |
| Coverage per board | 1 slat per board |
| Core construction | Tongue-and-groove, capped |
| Surface finish | Slatted with integral backing |
| Minimum joist spacing | Includes posts for hard ground |
| Fire classification | – |
| Residential warranty | 25 years residential / 10 years commercial |
| Commercial warranty | 10 years |
Compare the Full Range
Find the right fence panel for your boundary.
| Feature | Deluxe Composite | Slatted Composite |
|---|---|---|
| Style | Solid woodgrain | Modern horizontal slatted |
| Slat / board dimensions | Board 145×24mm | Slat 176×24×1726mm |
| Panel coverage | 1.83m wide × 1.8m high | 1.83m wide × 1.8m high |
| Post options | Aluminium (hard) or composite (soft) | Aluminium (hard) or composite (soft) |
| Privacy | Full | High |
| Wind resistance | Excellent | Good |
| Colours available | 8 | 8 |
| Best for | Privacy and screening | Contemporary garden design |
Installation Guide
Composite fencing fits between concrete-set posts. Allow 24 hours for post-mix to cure before loading panels.
Mark and dig post holes
Posts go at 1.83m centres for standard panels. Holes should be 600mm deep and 300mm wide. Aluminium post for hard ground (bolt-down) or composite post for soft ground (concrete-set).
Set the first post
Stand the post in the hole, brace plumb in both directions, and fill with post-mix or concrete. Check level repeatedly as it sets.
Slide in the panel boards
Stack horizontal slats or boards into the channel of the first post, working from the bottom up. Each board sits on the one below.
Set the second post
Slide the second post over the loose end of the boards, then plumb and concrete in place. Repeat across the fence run.
Fit the gate (if applicable)
Gates hinge to a reinforced gate post. Use the supplied heavy-duty hinges. Allow 8mm clearance at the latch side to prevent binding in wet weather.
Cap and inspect
Fit decorative post caps. Wash the whole fence with soapy water to remove dust and handling marks.
